Solenoid, Tubular, Pull Type, SOTUL076105

Technical specifications and dimensions for SOTUL076105

Solenoid, Tubular, Pull Type
item #: SOTUL076105

Name: Solenoid, Tubular, Pull Type
Brand: ElectroMechanicsOnline
SKU: SOTUL076105
Price: 947.4200 USD
Availability: InStock

Made in USA

Availability: in stock - available for immediate shipment

Series S-41-300
Tubular Solenoid, Pull type, 3.00" (76 mm) DIA X 4.13" (105 mm) L

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Solenoid Driver Module

ELSOSDM840

Unit Price:
1-4 pieces:	$947.42
5-9 pieces:	$831.06
10-24 pieces:	$741.06
25-49 pieces:	$662.24
50-99 pieces:	$571.19
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage	06	09	12	18	24	30	36	48	72	120

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series S-41-300
Optional Plunger Return Spring: SP50

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 30 Watts
Force at 0.10" (2.5 mm) stroke: 794.0 Oz (22510 gr)
Force at 1.00" (25.4 mm) stroke: 73.0 Oz (2070 gr)
Force at 1.50" (38.1 mm) stroke: 26.0 Oz (737 gr)
Available for voltages equal to or greater than 6 Volts DC

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 900 Seconds
Approximate Input Power = 60 Watts
Force at 0.10" (2.5 mm) stroke: 965.0 Oz (27358 gr)
Force at 1.00" (25.4 mm) stroke: 145.0 Oz (4111 gr)
Force at 1.50" (38.1 mm) stroke: 50.0 Oz (1418 gr)
Available for voltages equal to or greater than 9 Volts DC

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 300 Seconds
Approximate Input Power = 120 Watts
Force at 0.10" (2.5 mm) stroke: 1132.0 Oz (32092 gr)
Force at 1.00" (25.4 mm) stroke: 285.0 Oz (8080 gr)
Force at 1.50" (38.1 mm) stroke: 110.0 Oz (3119 gr)
Force at 1.90" (48.3 mm) stroke: 41.0 Oz (1162 gr)
Available for voltages equal to or greater than 12 Volts DC

P = Pulse (10%) Duty Cycle, Maximum On-Time = 100 Seconds
Approximate Input Power = 300 Watts
Force at 0.10" (2.5 mm) stroke: 1410.0 Oz (39974 gr)
Force at 1.00" (25.4 mm) stroke: 607.0 Oz (17209 gr)
Force at 1.50" (38.1 mm) stroke: 261.0 Oz (7399 gr)
Force at 2.20" (55.9 mm) stroke: 41.0 Oz (1162 gr)
Available for voltages equal to or greater than 18 Volts DC

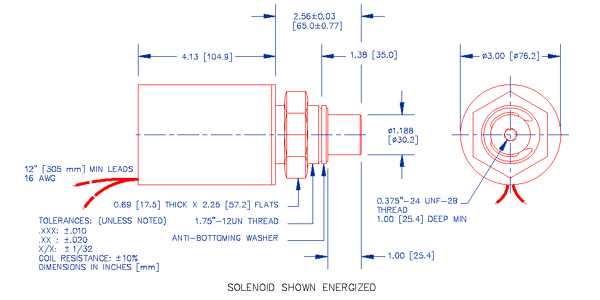

Tubular Solenoid, Pull type, 3.00" (76 mm) DIA X 4.13" (105 mm) L.
Mounting: Threaded front end and matching 1.75"-12 nut.
Minimum Heat Sink: Equivalent of 12.0" x 12.0" x 0.125" (305 mm x 305 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)

Shipping Weight: 9.2 lb (4.2 kg)
