Solenoid, Open Frame, Pull Type, SOOCL021044

Technical specifications and dimensions for SOOCL021044

Solenoid, Open Frame, Pull Type
item #: SOOCL021044

Name: Solenoid, Open Frame, Pull Type
Brand: ElectroMechanicsOnline
SKU: SOOCL021044
Price: 38.1100 USD
Availability: InStock

Made in USA

Availability: in stock - available for immediate shipment

Series S-17-85-Q
Open (Box C) Frame Solenoid, Pull type, 0.84" (21 mm) W X 0.92" (23 mm) H X 1.75" (44 mm) L

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Solenoid Driver Module

ELSOSDM840

Unit Price:
1-4 pieces:	$38.11
5-9 pieces:	$33.40
10-24 pieces:	$29.81
25-49 pieces:	$26.59
50-99 pieces:	$22.99
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage	06	09	12	18	24	30	36	48	72	120

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series S-17-85-Q
Optional Plunger Return Springs: SP10 and SP11

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 5 Watts
Force at 0.10" (2.5 mm) stroke: 18.0 Oz (510 gr)
Force at 0.50" (12.7 mm) stroke: 3.0 Oz (85 gr)
Force at 1.00" (25.4 mm) stroke: 1.0 Oz (28 gr)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 100 Seconds
Approximate Input Power = 10 Watts
Force at 0.10" (2.5 mm) stroke: 31.0 Oz (879 gr)
Force at 0.50" (12.7 mm) stroke: 7.0 Oz (198 gr)
Force at 1.00" (25.4 mm) stroke: 2.0 Oz (57 gr)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 15 Seconds
Approximate Input Power = 20 Watts
Force at 0.10" (2.5 mm) stroke: 45.0 Oz (1276 gr)
Force at 0.50" (12.7 mm) stroke: 13.0 Oz (369 gr)
Force at 1.00" (25.4 mm) stroke: 3.0 Oz (85 gr)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 8 Seconds
Approximate Input Power = 50 Watts
Force at 0.10" (2.5 mm) stroke: 60.0 Oz (1701 gr)
Force at 0.50" (12.7 mm) stroke: 22.0 Oz (624 gr)
Force at 1.00" (25.4 mm) stroke: 6.5 Oz (184 gr)

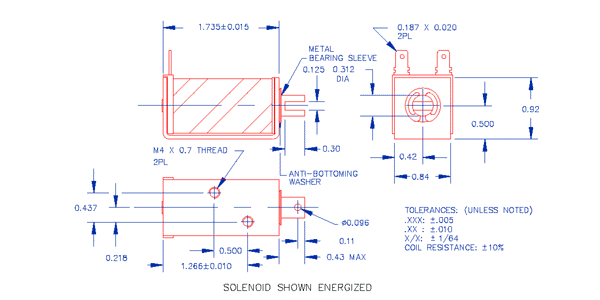

Open (Box C) Frame Solenoid, Pull type, 0.84"(21 mm)W X 0.92"(23 mm)H X 1.75" (44 mm)L.
Mounting: Two tapped holes 8-32 (or M4 X 0.7) on the body.
Minimum Heat Sink: Equivalent of 4.0" x 4.0" x 0.125" (102 mm x 102 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)

Shipping Weight: 0.8 lb (0.4 kg)
