Technical specifications and dimensions for SOLOH014020

Solenoid, Low Profile
item #: SOLOH014020

Name: Solenoid, Low Profile
Brand: ElectroMechanicsOnline
SKU: SOLOH014020
Price: 42.4900 USD
Availability: InStock

Made in USA

Availability: in stock - available for immediate shipment

Series S-08-54

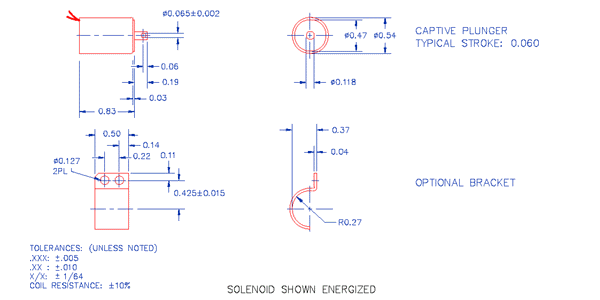

Low Profile Solenoid, Pull type, 0.54" (13.7 mm) DIA X 0.80" (20.3 mm) L

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Solenoid Driver Module

ELSOSDM840

Unit Price:
1-4 pieces:	$42.49
5-9 pieces:	$37.27
10-24 pieces:	$33.70
25-49 pieces:	$29.97
50-99 pieces:	$27.23
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage	03	06	09	12	18	24	30	36	48	72

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

The optional bracket is sold separately.

Series S-08-54

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

Built-in Return Spring
Typical Spring Force: 2.5/3.5 Oz (0.7/1.0 N)
This solenoid has a captive plunger with a maximum stroke of 0.06" (1.52 mm)

The following forces do not account for the built-in return spring.

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 3.3 Watts
Gross Force at 0.01" (0.25 mm) stroke: 13.0 Oz (3.6 N)
Gross Force at 0.03" (0.76 mm) stroke: 4.0 Oz (1.1 N)
Gross Force at 0.06" (1.52 mm) stroke: 1.5 Oz (0.4 N) * Caution: Gross force is less than spring force.

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 100 Seconds
Approximate Input Power = 6.5 Watts
Gross Force at 0.01" (0.25 mm) stroke: 16.0 Oz (4.4 N)
Gross Force at 0.03" (0.76 mm) stroke: 6.0 Oz (1.7 N)
Gross Force at 0.06" (1.52 mm) stroke: 3.0 Oz (0.8 N) * Caution: Gross force is less than spring force.

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 20 Seconds
Approximate Input Power = 13 Watts
Gross Force at 0.01" (0.25 mm) stroke: 20.0 Oz (5.6 N)
Gross Force at 0.03" (0.76 mm) stroke: 9.0 Oz (2.5 N)
Gross Force at 0.06" (1.52 mm) stroke: 4.0 Oz (1.1 N)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 4 Seconds
Approximate Input Power = 32.5 Watts
Gross Force at 0.01" (0.25 mm) stroke: 26.0 Oz (7.2 N)
Gross Force at 0.03" (0.76 mm) stroke: 15.0 Oz (4.2 N)
Gross Force at 0.06" (1.52 mm) stroke: 9.0 Oz (2.5 N)

Low Profile Solenoid, Push/Pull type, 0.54" (13.7 mm) DIA X 0.80" (20.3 mm) L.
Mounting: No mounting feature is supplied with the standard solenoid. Optional bracket may be purchased separately.
Minimum Heat Sink: Equivalent of 2.0" x 2.0" x 0.125" (51 mm x 51 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)

Shipping Weight: 0.5 lb (0.2 kg)
