Technical specifications and dimensions for ELMATU038022

Electromagnet, Tubular, Low Profile
item #: ELMATU038022

Name: Electromagnet, Tubular, Low Profile
Brand: ElectroMechanicsOnline
SKU: ELMATU038022
Price: 119.4300 USD
Availability: InStock

Made in USA

Availability: in stock - available for immediate shipment

Series E-09-150
Electromagnet, Tubular, Low Profile, 1.50" (38 mm) DIA X 0.87" (22 mm) L

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Plug-in Adapter Power Supply, 10.5 VDC, 1300MA

ELPS10D120A1300

Unit Price:
1-4 pieces:	$119.43
5-9 pieces:	$98.52
10-24 pieces:	$81.91
25-49 pieces:	$68.40
50-99 pieces:	$57.57
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage	06	09	12	18	24	30	36	48	72	120

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series E-09-150

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 3 Watts
Holding force against cold rolled steel with a thickness of:
0.188" (4.8 mm): 32 Lb (14515 gr)
0.125" (3.2 mm): 31 Lb (14062 gr)
0.063" (1.6 mm): 16 Lb (7258 gr)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 600 Seconds
Approximate Input Power = 6 Watts
Holding force against cold rolled steel with a thickness of:
0.188" (4.8 mm): 37 Lb (16783 gr)
0.125" (3.2 mm): 35 Lb (15876 gr)
0.063" (1.6 mm): 19 Lb (8618 gr)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 180 Seconds
Approximate Input Power = 12 Watts
Holding force against cold rolled steel with a thickness of:
0.188" (4.8 mm): 45 Lb (20412 gr)
0.125" (3.2 mm): 42 Lb (19051 gr)
0.063" (1.6 mm): 23 Lb (10433 gr)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 45 Seconds
Approximate Input Power = 30 Watts
Holding force against cold rolled steel with a thickness of:
0.188" (4.8 mm): 58 Lb (26309 gr)
0.125" (3.2 mm): 54 Lb (24494 gr)
0.063" (1.6 mm): 27 Lb (12247 gr)

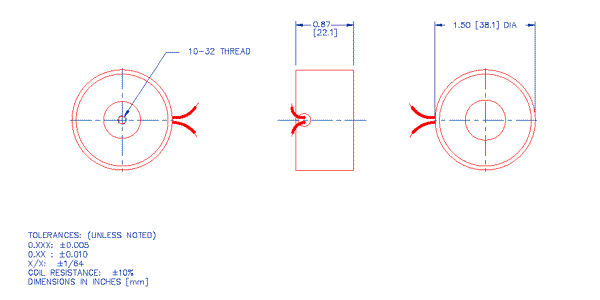

Tubular Low Profile Electromagnet, 1.50" (38 mm) DIA X 0.87" (22 mm) L.
Mounting: 10-32 threaded hole.
Minimum Heat Sink: Equivalent of 3.0" x 3.0" x 0.125" (76 mm x 76 mm x 3.2 mm) metal Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = electromagnet resistance (ohms)
I = current used by electromagnet (amperes)
P = input power to electromagnet (watts)

Shipping Weight: 0.8 lb (0.4 kg)

Quantity adjustment on next page

Electromagnet, Tubular, Low Profile item #: ELMATU038022
