Specifications for Electromagnet, Tubular, ELMATU038071

Electromagnet, Tubular
item #: ELMATU038071
Made in USA

Name: Electromagnet, Tubular
Brand: MSS
SKU: ELMATU038071
Price: 174.12 USD
Availability: InStock

Availability: in stock - available for immediate shipment

Series E-28-150
Electromagnet, Tubular, 1.50" (38 mm) DIA X 2.81" (71 mm) L

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Plug-in Adapter Power Supply, 10.5 VDC, 1300MA

ELPS10D120A1300

Unit Price:
1-4 pieces:	$174.12
5-9 pieces:	$143.71
10-24 pieces:	$119.40
25-49 pieces:	$99.72
50-99 pieces:	$83.92
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage	06	09	12	18	24	30	36	48	72	120

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series E-28-150

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 6 Watts
Holding force against cold rolled steel with a thickness of:
0.375" (9.5 mm): 60 Lb (27216 gr - 267 N)
0.250" (6.4 mm): 56 Lb (25402 gr - 249 N)
0.188" (4.8 mm): 52 Lb (23587 gr - 231 N)
0.125" (3.2 mm): 47 Lb (21319 gr - 209 N)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 600 Seconds
Approximate Input Power = 12 Watts
Holding force against cold rolled steel with a thickness of:
0.375" (9.5 mm): 66 Lb (29938 gr - 294 N)
0.250" (6.4 mm): 63 Lb (28577 gr - 280 N)
0.188" (4.8 mm): 59 Lb (26762 gr - 263 N)
0.125" (3.2 mm): 55 Lb (24948 gr - 245 N)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 180 Seconds
Approximate Input Power = 24 Watts
Holding force against cold rolled steel with a thickness of:
0.375" (9.5 mm): 69 Lb (31298 gr - 307 N)
0.250" (6.4 mm): 66 Lb (29937 gr - 294 N)
0.188" (4.8 mm): 64 Lb (29030 gr - 285 N)
0.125" (3.2 mm): 61 Lb (27670 gr - 271 N)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 60 Seconds
Approximate Input Power = 60 Watts
Holding force against cold rolled steel with a thickness of:
0.375" (9.5 mm): 76 Lb (34474 gr - 338 N)
0.250" (6.4 mm): 73 Lb (33113 gr - 325 N)
0.188" (4.8 mm): 70 Lb (31752 gr - 311 N)
0.125" (3.2 mm): 68 Lb (30845 gr - 303 N)

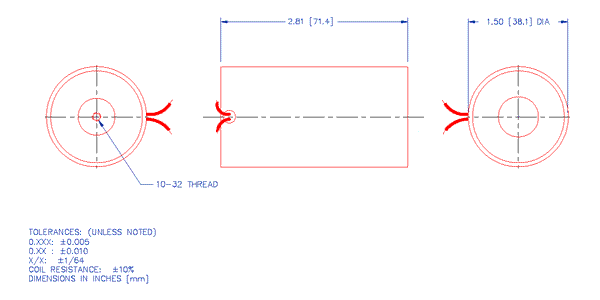

Tubular Electromagnet, 1.50" (38 mm) DIA X 2.81" (71 mm) L.
Mounting: 10-32 threaded hole.
Minimum Heat Sink: Equivalent of 6.0" x 6.0" x 0.125" (152 mm x 152 mm x 3.2 mm) metal Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = electromagnet resistance (ohms)
I = current used by electromagnet (amperes)
P = input power to electromagnet (watts)

Shipping Weight: 1.7 lb (0.8 kg)

Quantity adjustment on next page
