Solenoid, Tubular, Push Type, SOTUH076105

Specifications for Solenoid, Tubular, Push Type, SOTUH076105

Solenoid, Tubular, Push Type
item #: SOTUH076105
Made in USA

Name: Solenoid, Tubular, Push Type
Brand: MSS
SKU: SOTUH076105
Price: 1057.77 USD
Availability: InStock

Availability: in stock - available for immediate shipment

Series S-41-300-H

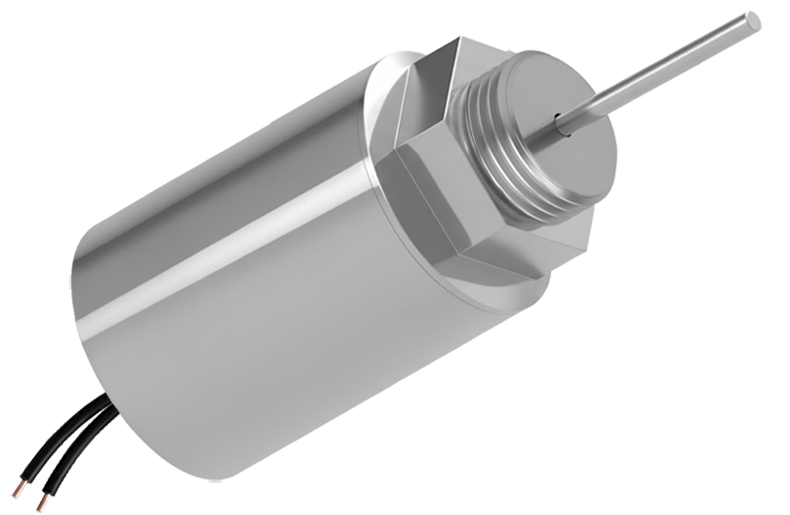

Tubular Solenoid, Push type, 3.00" (76 mm) DIA X 4.13" (105 mm) L

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Solenoid Driver Module

ELSOSDM840

Unit Price:
1-4 pieces:	$1,057.77
5-9 pieces:	$927.91
10-24 pieces:	$827.44
25-49 pieces:	$739.39
50-99 pieces:	$637.73
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage	06	09	12	18	24	30	36	48	72	120

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series S-41-300-H

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 30 Watts
Force at 0.10" (2.5 mm) stroke: 690.0 Oz (19562 gr)
Force at 1.00" (25.4 mm) stroke: 57.0 Oz (1616 gr)
Force at 1.30" (33.0 mm) stroke: 27 Oz (765 gr)
Available for voltages equal to or greater than 6 Volts DC

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 900 Seconds
Approximate Input Power = 60 Watts
Force at 0.10" (2.5 mm) stroke: 870.0 Oz (24665 gr)
Force at 1.00" (25.4 mm) stroke: 113.0 Oz (3204 gr)
Force at 1.50" (38.1 mm) stroke: 34.0 Oz (964 gr)
Available for voltages equal to or greater than 9 Volts DC

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 300 Seconds
Approximate Input Power = 120 Watts
Force at 0.10" (2.5 mm) stroke: 1070.0 Oz (30335 gr)
Force at 1.00" (25.4 mm) stroke: 172.0 Oz (4876 gr)
Force at 1.50" (38.1 mm) stroke: 68.0 Oz (1928 gr)
Force at 1.80" (45.7 mm) stroke: 31.0 Oz (879 gr)
Available for voltages equal to or greater than 12 Volts DC

P = Pulse (10%) Duty Cycle, Maximum On-Time = 100 Seconds
Approximate Input Power = 300 Watts
Force at 0.10" (2.5 mm) stroke: 1385.0 Oz (39265 gr)
Force at 1.00" (25.4 mm) stroke: 453.0 Oz (12843 gr)
Force at 1.50" (38.1 mm) stroke: 160.0 Oz (4536 gr)
Force at 2.10" (53.3 mm) stroke: 32.0 Oz (907 gr)
Available for voltages equal to or greater than 18 Volts DC

Tubular Solenoid, Push type, 3.00" (76 mm) DIA X 4.13" (105 mm) L.
Mounting: Threaded front end and matching 1.75"-12 nut.
Minimum Heat Sink: Equivalent of 12.0" x 12.0" x 0.125" (305 mm x 305 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)

Shipping Weight: 9.5 lb (4.3 kg)
