Solenoid, Low Profile
item #: SOLOH032013
Made in USA

Availability: in stock - available for immediate shipment

Series S-05-125
Low Profile Solenoid, Push/Pull type, 1.25" (32 mm) DIA X 0.50" (13 mm) L

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Solenoid Driver Module

ELSOSDM840

Unit Price:
1-4 pieces:	$121.15
5-9 pieces:	$106.25
10-24 pieces:	$94.78
25-49 pieces:	$84.69
50-99 pieces:	$73.02
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage	06	09	12	18	24	30	36	48	72	120

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series S-05-125
Optional Plunger Return Spring: SP08

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 4.5 Watts
Force at 0.025" (0.6 mm) stroke: 80.0 Oz (2268 gr)
Force at 0.10" (2.5 mm) stroke: 7.0 Oz (198 gr)
Force at 0.20" (5.1 mm) stroke: 1.5 Oz (43 gr)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 100 Seconds
Approximate Input Power = 9 Watts
Force at 0.025" (0.6 mm) stroke: 105.0 Oz (2977 gr)
Force at 0.10" (2.5 mm) stroke: 15.5 Oz (439 gr)
Force at 0.20" (5.1 mm) stroke: 3.5 Oz (99 gr)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 30 Seconds
Approximate Input Power = 18 Watts
Force at 0.025" (0.6 mm) stroke: 120.0 Oz (3402 gr)
Force at 0.10" (2.5 mm) stroke: 29.0 Oz (822 gr)
Force at 0.20" (5.1 mm) stroke: 7.0 Oz (198 gr)
Force at 0.25" (6.4 mm) stroke: 2.5 Oz (71 gr)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 10 Seconds
Approximate Input Power = 45 Watts
Force at 0.025" (0.6 mm) stroke: 180.0 Oz (5103 gr)
Force at 0.10" (2.5 mm) stroke: 73.0 Oz (2070 gr)
Force at 0.20" (5.1 mm) stroke: 20.0 Oz (567 gr)
Force at 0.25" (6.4 mm) stroke: 7.8 Oz (221 gr)

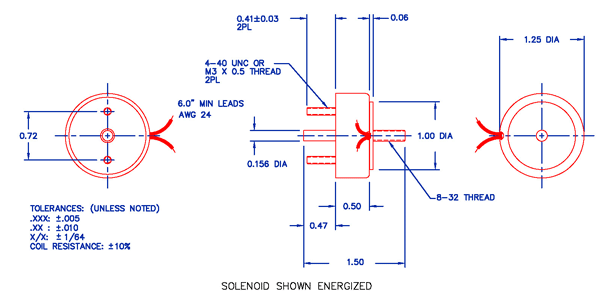

Low Profile Solenoid, Push/Pull type, 1.25" (32 mm) DIA X 0.50" (13 mm) L.
Mounting: Two bolts 4-40 on the back plate.
Minimum Heat Sink: Equivalent of 4.0" x 4.0" x 0.125" (102 mm x 102 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)

Shipping Weight: 0.7 lb (0.3 kg)
