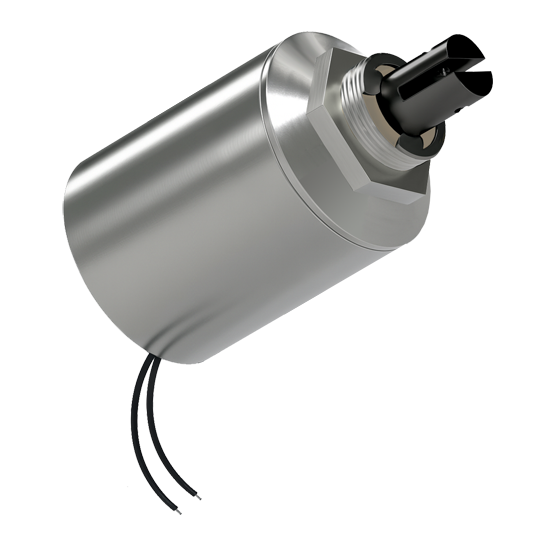

Solenoid, Tubular, Pull Type
item #: SOTUL051056

Made in USA



Availability:   in stock - available for immediate shipment

Related Optional Products
Full Wave Bridge Rectifier
ELFWBL352

Solenoid Driver Module
ELSOSDM840

Unit Price:
1-4 pieces: $166.85
5-9 pieces: $146.35
10-24 pieces: $130.49
25-49 pieces: $116.62
50-99 pieces: $100.57
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage
06
09
12
18
24
30
36
48
72
120

select a duty cycle
C
I
L
P
Special Comments



Quantity adjustment on next page

Series S-22-200
Optional Plunger Return Spring: SP30 and SP31



If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 15 Watts
Force at 0.10" (2.5 mm) stroke: 205.0 Oz (5812 gr)
Force at 0.50" (12.7 mm) stroke: 30.0 Oz (851 gr)
Force at 1.00" (25.4 mm) stroke: 4.0 Oz (113 gr)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 600 Seconds
Approximate Input Power = 30 Watts
Force at 0.10" (2.5 mm) stroke: 250.0 Oz (7088 gr)
Force at 0.50" (12.7 mm) stroke: 70.0 Oz (1985 gr)
Force at 1.00" (25.4 mm) stroke: 11.0 Oz (312 gr)
Force at 1.10" (27.9 mm) stroke: 6.5 Oz (184 gr)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 220 Seconds
Approximate Input Power = 60 Watts
Force at 0.10" (2.5 mm) stroke: 320.0 Oz (9072 gr)
Force at 0.50" (12.7 mm) stroke: 118.0 Oz (3345 gr)
Force at 1.00" (25.4 mm) stroke: 20.0 Oz (567 gr)
Force at 1.20" (30.5 mm) stroke: 7.0 Oz (198 gr)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 60 Seconds
Approximate Input Power = 150 Watts
Force at 0.10" (2.5 mm) stroke: 405.0 Oz (11482 gr)
Force at 0.50" (12.7 mm) stroke: 240.0 Oz (6804 gr)
Force at 1.00" (25.4 mm) stroke: 52.0 Oz (1474 gr)
Force at 1.30" (33.0 mm) stroke: 9.0 Oz (255 gr)

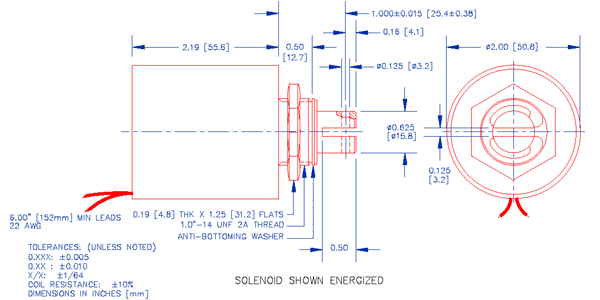

Tubular Solenoid, Pull type, 2.00" (51 mm) DIA X 2.19" (56 mm) L.
Mounting: Threaded front end and matching 1"-14 nut.
Minimum Heat Sink: Equivalent of 6.0" x 6.0" x 0.125" (152 mm x 152 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)
