Solenoid, Tubular, Pull Type, SOTUL023051

Technical specifications and dimensions for SOTUL023051

Solenoid, Tubular, Pull Type
item #: SOTUL023051

Name: Solenoid, Tubular, Pull Type
Brand: ElectroMechanicsOnline
SKU: SOTUL023051
Price: 81.7900 USD
Availability: InStock

Made in USA

Availability: in stock - available for immediate shipment

Series S-20-90
Tubular Solenoid, Pull type, 0.90" (23 mm) DIA X 2.00" (51 mm) L

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Solenoid Driver Module

ELSOSDM840

Unit Price:
1-4 pieces:	$81.79
5-9 pieces:	$71.78
10-24 pieces:	$63.98
25-49 pieces:	$57.18
50-99 pieces:	$49.32
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage	06	09	12	18	24	30	36	48	72	120

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series S-20-90
Optional Plunger Return Spring: SP15, SP19, SP20, SP21

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 9 Watts
Force at 0.05" (1.3 mm) stroke: 50 Oz (13.9 N)
Force at 0.25" (6.4 mm) stroke: 14 Oz (3.9 N)
Force at 0.50" (12.7 mm) stroke: 6 Oz (1.8 N)
Force at 0.75" (19.1 mm) stroke: 3 Oz (0.9 N)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 300 Seconds
Approximate Input Power = 18 Watts
Force at 0.05" (1.3 mm) stroke: 67 Oz (18.7 N)
Force at 0.25" (6.4 mm) stroke: 24 Oz (6.7 N)
Force at 0.50" (12.7 mm) stroke: 12 Oz (3.4 N)
Force at 0.75" (19.1 mm) stroke: 7 Oz (2.0 N)
Force at 1.00" (25.4 mm) stroke: 3 Oz (0.9 N)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 60 Seconds
Approximate Input Power = 36 Watts
Force at 0.05" (1.3 mm) stroke: 87 Oz (24.1 N)
Force at 0.25" (6.4 mm) stroke: 39 Oz (10.9 N)
Force at 0.50" (12.7 mm) stroke: 23 Oz (6.5 N)
Force at 0.75" (19.1 mm) stroke: 14 Oz (3.8 N)
Force at 1.00" (25.4 mm) stroke: 6 Oz (1.7 N)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 12 Seconds
Approximate Input Power = 90 Watts
Force at 0.05" (1.3 mm) stroke: 113 Oz (31.3 N)
Force at 0.25" (6.4 mm) stroke: 62 Oz (17.3 N)
Force at 0.50" (12.7 mm) stroke: 44 Oz (12.1 N)
Force at 0.75" (19.1 mm) stroke: 33 Oz (9.1 N)
Force at 1.00" (25.4 mm) stroke: 15 Oz (4.2 N)

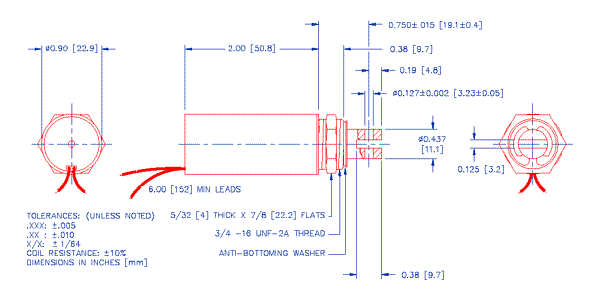

Tubular Solenoid, Pull type, 0.90"(23 mm)DIA X 2.00"(51 mm)L.
Mounting: Threaded front end and matching 3/4"-16 nut.
Minimum Heat Sink: Equivalent of 4.0" x 4.0" x 0.125" (102 mm x 102 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)

Shipping Weight: 0.9 lb (0.4 kg)
