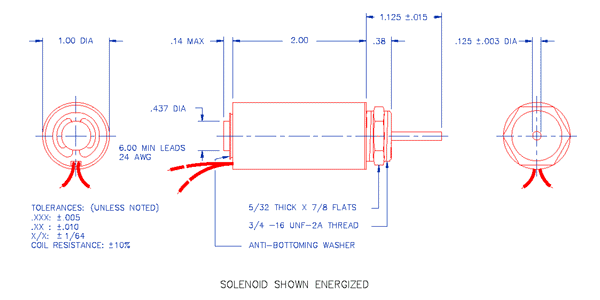

Quantity adjustment on next page Optional Plunger Return Spring: SP15, SP19, SP20, SP21  If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle". C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite Approximate Input Power = 10 Watts Force at 0.10" (2.5 mm) stroke: 47.0 Oz (1332 gr) Force at 0.50" (12.7 mm) stroke: 8.0 Oz (227 gr) Force at 1.00" (25.4 mm) stroke: 3.0 Oz (85 gr) I = Intermittent (50%) Duty Cycle, Maximum On-Time = 400 Seconds Approximate Input Power = 20 Watts Force at 0.10" (2.5 mm) stroke: 71.0 Oz (2013 gr) Force at 0.50" (12.7 mm) stroke: 12.0 Oz (340 gr) Force at 1.00" (25.4 mm) stroke: 6.0 Oz (170 gr) L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 35 Seconds Approximate Input Power = 40 Watts Force at 0.10" (2.5 mm) stroke: 110.0 Oz (3119 gr) Force at 0.50" (12.7 mm) stroke: 23.0 Oz (652 gr) Force at 1.00" (25.4 mm) stroke: 10.0 Oz (284 gr) P = Pulse (10%) Duty Cycle, Maximum On-Time = 10 Seconds Approximate Input Power = 100 Watts Force at 0.10" (2.5 mm) stroke: 163.0 Oz (4621 gr) Force at 0.50" (12.7 mm) stroke: 55.0 Oz (1559 gr) Force at 1.00" (25.4 mm) stroke: 30.0 Oz (851 gr) Tubular Solenoid, Push type, 1.00"(25 mm)DIA X 2.00"(51 mm)L. Mounting: Threaded front end and matching 3/4"-16 nut. Minimum Heat Sink: Equivalent of 4.0" x 4.0" x 0.125" (102 mm x 102 mm x 3.2 mm) Aluminum Plate All values are at 25ºC. Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off. V = R × I P = V × I = V² /R = R × I² V = input D.C. voltage (volts) R = solenoid resistance (ohms) I = current used by solenoid (amperes) P = input power to solenoid (watts) Quantity adjustment on next page
|
