Solenoid, Low Profile
item #: SOLOH067040

Made in USA



Availability:   in stock - available for immediate shipment

Related Optional Products
Full Wave Bridge Rectifier
ELFWBL352

Solenoid Driver Module
ELSOSDM840

Unit Price:
1-4 pieces: $258.19
5-9 pieces: $247.08
10-24 pieces: $238.71
25-49 pieces: $229.71
50-99 pieces: $212.26
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage
06
09
12
18
24
30
36
48
72
120

select a duty cycle
C
I
L
P
Special Comments



Quantity adjustment on next page

Series S-16-261
Optional Plunger Return Spring: SP40



If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 20 Watts
Force at 0.05" (1.3 mm) stroke: 720 Oz (20412 gr)
Force at 0.25" (6.4 mm) stroke: 144 Oz (4082 gr)
Force at 0.50" (12.7 mm) stroke: 48 Oz (1361 gr)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 230 Seconds
Approximate Input Power = 40 Watts
Force at 0.05" (1.3 mm) stroke: 960 Oz (27216 gr)
Force at 0.25" (6.4 mm) stroke: 288 Oz (8165 gr)
Force at 0.50" (12.7 mm) stroke: 80 Oz (2268 gr)
Force at 0.80" (20.3 mm) stroke: 11 Oz (312 gr)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 90 Seconds
Approximate Input Power = 80 Watts
Force at 0.05" (1.3 mm) stroke: 1200 Oz (34020 gr)
Force at 0.25" (6.4 mm) stroke: 530 Oz (15026 gr)
Force at 0.50" (12.7 mm) stroke: 170 Oz (4820 gr)
Force at 0.80" (20.3 mm) stroke: 30 Oz (851 gr)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 30 Seconds
Approximate Input Power = 200 Watts
Force at 0.05" (1.3 mm) stroke: 1730 Oz (49046 gr)
Force at 0.25" (6.4 mm) stroke: 1040 Oz (29484 gr)
Force at 0.50" (12.7 mm) stroke: 416 Oz (11794 gr)
Force at 0.80" (20.3 mm) stroke: 96 Oz (2722 gr)
Available for voltages equal to or greater than 9 Volts DC

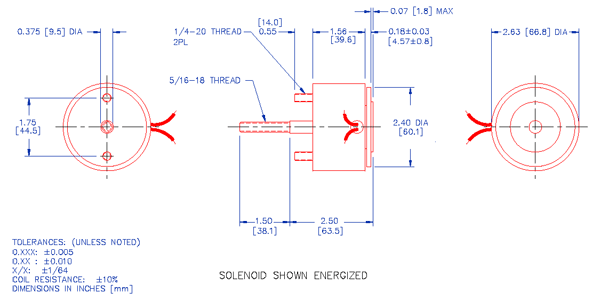

Low Profile Solenoid, Push/Pull type, 2.63" (67 mm) DIA X 1.56" (40 mm) L.
Mounting: Two bolts 1/4 -20 or 1/4 -28 on the back plate.
Minimum Heat Sink: Equivalent of 5.0" x 5.0" x 0.125" (127 mm x 127 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)



Quantity adjustment on next page
