Solenoid, Rotary, Counter-Clockwise, Fwd Shaft Ext
item #: SOCCM070026

Made in USA



Availability:   in stock - available for immediate shipment

Related Optional Products
Full Wave Bridge Rectifier
ELFWBL352

Solenoid Driver Module
ELSOSDM840

Unit Price:
1-4 pieces: $409.77
5-9 pieces: $359.46
10-24 pieces: $320.54
25-49 pieces: $286.39
50-99 pieces: $247.03
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage
06
09
12
18
24
30
36
48
72
120

select a duty cycle
C
I
L
P
Special Comments



Quantity adjustment on next page

Series R-10-275-CCWM


If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 12 Watts
Starting Gross Torque: 16.0 Oz-In (1152 gr-cm)
Spring Torque: 3.0 Oz-In (216 gr-cm)
Starting Net Torque: 13.0 Oz-In (936 gr-cm)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 640 Seconds
Approximate Input Power = 24 Watts
Starting Gross Torque: 29.0 Oz-In (2088 gr-cm)
Spring Torque: 3.0 Oz-In (216 gr-cm)
Starting Net Torque: 26.0 Oz-In (1872 gr-cm)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 210 Seconds
Approximate Input Power = 48 Watts
Starting Gross Torque: 41.0 Oz-In (2952 gr-cm)
Spring Torque: 3.0 Oz-In (216 gr-cm)
Starting Net Torque: 38.0 Oz-In (2736 gr-cm)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 60 Seconds
Approximate Input Power = 120 Watts
Starting Gross Torque: 66.0 Oz-In (4752 gr-cm)
Spring Torque: 3.0 Oz-In (216 gr-cm)
Starting Net Torque: 63.0 Oz-In (4536 gr-cm)

Rotary Solenoid, Counter-Clockwise, 2.75" (70 mm) DIA X 1.04" (26 mm) L, Forward Shaft Extension.

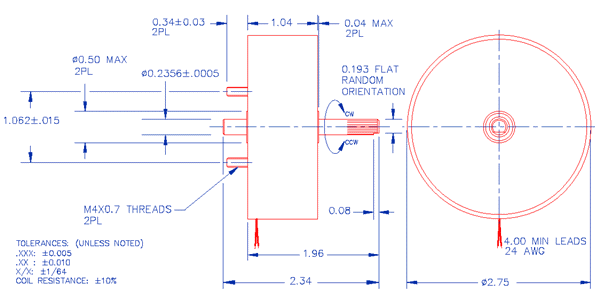

Direction of rotation viewed from the face opposite mounting studs as shown in the mechanical drawing.
Mounting: Two bolts 8-32 (or M4 X 0.7) on the back plate.
Built-in Return Spring
Total Rotational Stroke: 40º
Minimum Heat Sink: Equivalent of 6.0" x 6.0" x 0.125" (152 mm x 152 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)



Quantity adjustment on next page
