Stepper Motor Driver Module
item #: MCSTPMDRV-807

Related Optional Products

Stepper Motor Control Card

MCSMPSMC-3

Stepper Motor, Size 23, 1.8º per Step, 140 oz-in

MCSM23-200-140-W

Unit Price:
1-4 pieces:	$154.00
5-9 pieces:	$146.30
10-24 pieces:	$141.18
25-49 pieces:	$136.24
50-99 pieces:	$131.47
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:




Special Comments

Quantity adjustment on next page

A high performance, cost effective stepper motor driver to implement intelligent stepper motor control.

The driver incorporates an advanced architecture and surface mount technology to achieve an exceptional power density.

Features:

0.3 To 7 Amps Phase Current
24V To 80V Power Supply
10 Microsteps Per Step
Size 11 To 42 Motors
Mid-Band Resonance Compensation
Low-Speed Resonance Nulling Trimpot
Auto Current Reduction
200 KHz Max Step Rate
Opto-Isolated Step And Direction Inputs
20W Dissipation At 7A Per Phase
20KHz Master Oscillator PWM
0C To 70C Operating Temperature
LED Power Indicator

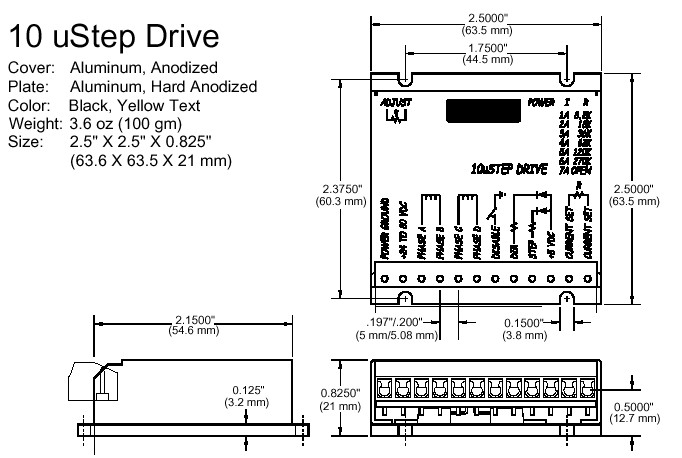

Small Size: 2.5" by 2.5" by 0.82" (63 mm By 63 mm By 21 mm)
Light: 3.6 Oz (100 gm)
Anodized Aluminum Package
Modular 2-Piece Main Connector
