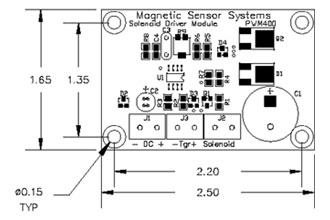

Solenoid Driver PWM Module
item #: ELSOPWM400



Availability:   in stock - available for immediate shipment

you may also consider
Solenoid Driver Module
ELSOSDM840

Power Driver Module, Proportional, Voltage Controlled
ELSOPWM950

Unit Price:
1-4 pieces: $101.71
5-9 pieces: $89.22
10-24 pieces: $79.56
25-49 pieces: $71.75
50-99 pieces: $65.19
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:


Special Comments



Quantity adjustment on next page

The Module is designed to enable the user to convert the input voltage in order to apply a different voltage to the solenoid or coil.

The output voltage to the coil can be varied to within 5% to 85% of the input voltage by adjusting an on board trim potentiometer.

The voltage within the above range can then be applied to the coil when a voltage (2 to 40 VDC) is applied to the trigger.

This is particularly useful when a solenoid requiring a relatively large amount of power needs to be turned on and off with a low power trigger voltage such as a TTL compatible signal.


Parameter Min Typical Max Units
Supply Input Voltage
8

40
VDC
Continuous Power
35
W
Continuous RMS Current
3
A
Momentary Current
20
A
Command (Trigger) Range
2

40
VDC
Command Input Resistance
50

KOhms
Operating Temperature
0

80
Deg C
Storage Temperature
-40

125
Deg C
PWM Frequency
20

KHz
Output to Input Voltage Ratio
5

85
%
