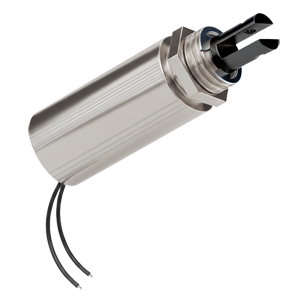

Solenoid, Tubular, Pull Type
item #:  SOTUL019038

Made in USA



Availability:  in stock - available for immediate shipment

Series S-15-75
Tubular Solenoid, Pull type, 0.75"(19 mm) DIA X 1.50"(38 mm) L

Related Optional Products
Full Wave Bridge Rectifier
ELFWBL352

Solenoid Driver Module
ELSOSDM840

Unit Price:
    1-4 pieces: $60.20
    5-9 pieces: $52.79
10-24 pieces: $47.08
25-49 pieces: $42.09
50-99 pieces: $36.32
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage
06
09
12
18
24
30
36
48
72
120

select a duty cycle
C
I
L
P
Special Comments


Quantity adjustment on next page

Series S-15-75
Optional Plunger Return Springs: SP10 and SP11



If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 8 Watts
Force at 0.05" (1.3 mm) stroke: 20.0 Oz (567 gr)
Force at 0.25" (6.4 mm) stroke: 5.5 Oz (156 gr)
Force at 0.50" (12.7 mm) stroke: 2.0 Oz (57 gr)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 180 Seconds
Approximate Input Power = 16 Watts
Force at 0.05" (1.3 mm) stroke: 30.0 Oz (851 gr)
Force at 0.25" (6.4 mm) stroke: 12.0 Oz (340 gr)
Force at 0.50" (12.7 mm) stroke: 5.5 Oz (156 gr)
Force at 0.75" (19.1 mm) stroke: 2.0 Oz (57 gr)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 30 Seconds
Approximate Input Power = 32 Watts
Force at 0.05" (1.3 mm) stroke: 46.0 Oz (1304 gr)
Force at 0.25" (6.4 mm) stroke: 21.0 Oz (595 gr)
Force at 0.50" (12.7 mm) stroke: 13.0 Oz (369 gr)
Force at 0.75" (19.1 mm) stroke: 4.0 Oz (113 gr)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 8 Seconds
Approximate Input Power = 80 Watts
Force at 0.05" (1.3 mm) stroke: 57.0 Oz (1616 gr)
Force at 0.25" (6.4 mm) stroke: 33.0 Oz (936 gr)
Force at 0.50" (12.7 mm) stroke: 26.0 Oz (737 gr)
Force at 0.75" (19.1 mm) stroke: 13.0 Oz (369 gr)

Tubular Solenoid, Pull type, 0.75"(19 mm) DIA X 1.50"(38 mm) L.
Mounting: Threaded front end and matching 9/16"-18 nut.
Minimum Heat Sink: Equivalent of 3.0" x 3.0" x 0.125" (76 mm x 76 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)



Quantity adjustment on next page
